Diagram 76/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

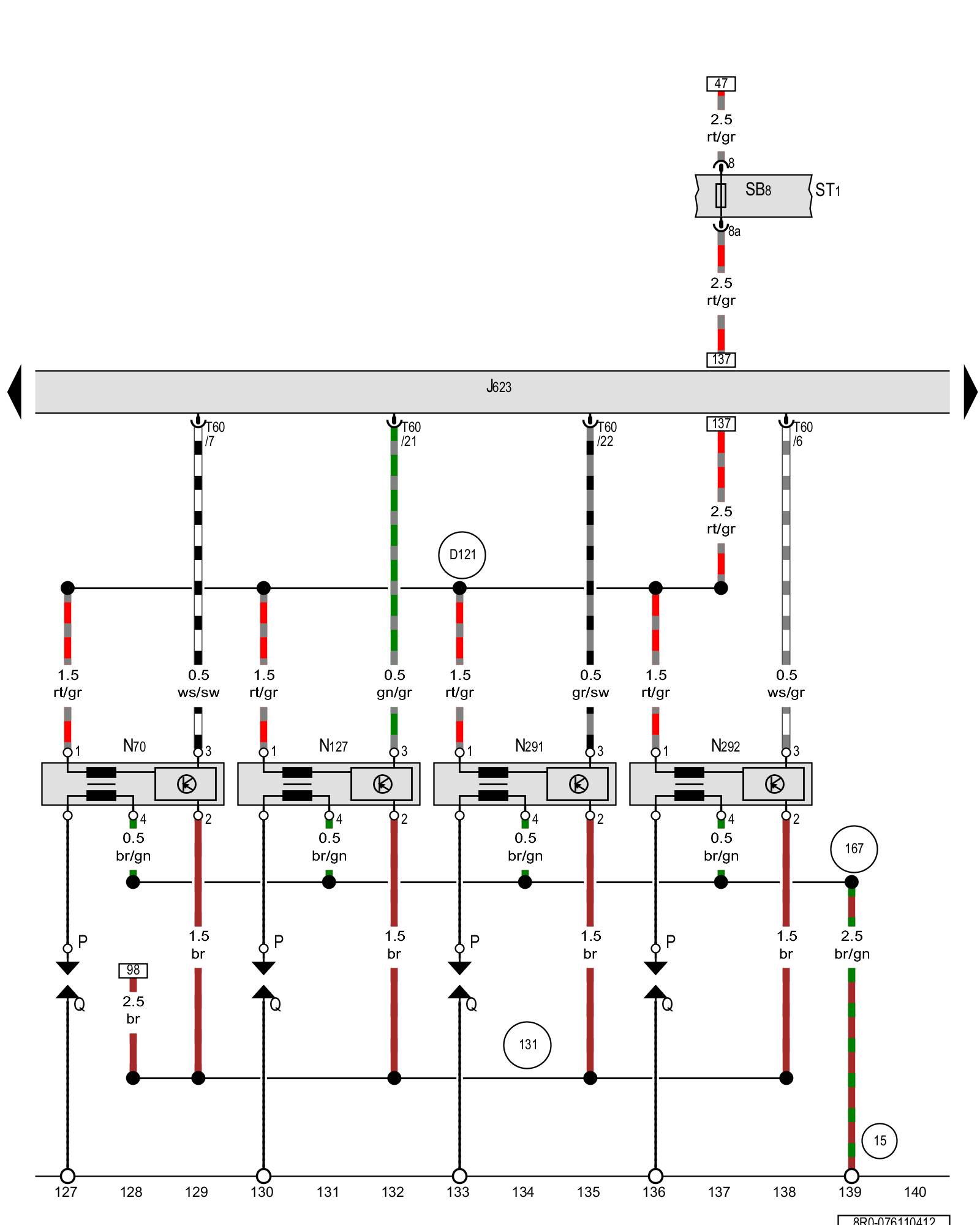

Ignition coil 1 with power output stage, Ignition coil 2 with power output stage, Ignition coil 3 with power output stage, Ignition coil 4 with power output stage





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control Modules in Front Part Of Vehicle

N70 - Ignition coil 1 with power output stage Locations

N127 - Ignition coil 2 with power output stage Locations

N291 - Ignition coil 3 with power output stage Locations

N292 - Ignition coil 4 with power output stage Locations

P - Spark plug connectors

Q - Spark plugs

ST1 - Fuse panel 1

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses

T60 - 60-pin connector Locations

(15) - Ground connection on cylinder head

(131) - Ground connection 2 (in engine compartment wiring harness)

(167) - Ground connection 4 (in engine compartment wiring harness)

(D121) - Connection (19) (in engine compartment wiring harness)

Previous Diagram 76/10 (Tracks 113-126)

Next Diagram 76/12 (Tracks 141-154)
