Diagram 76/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

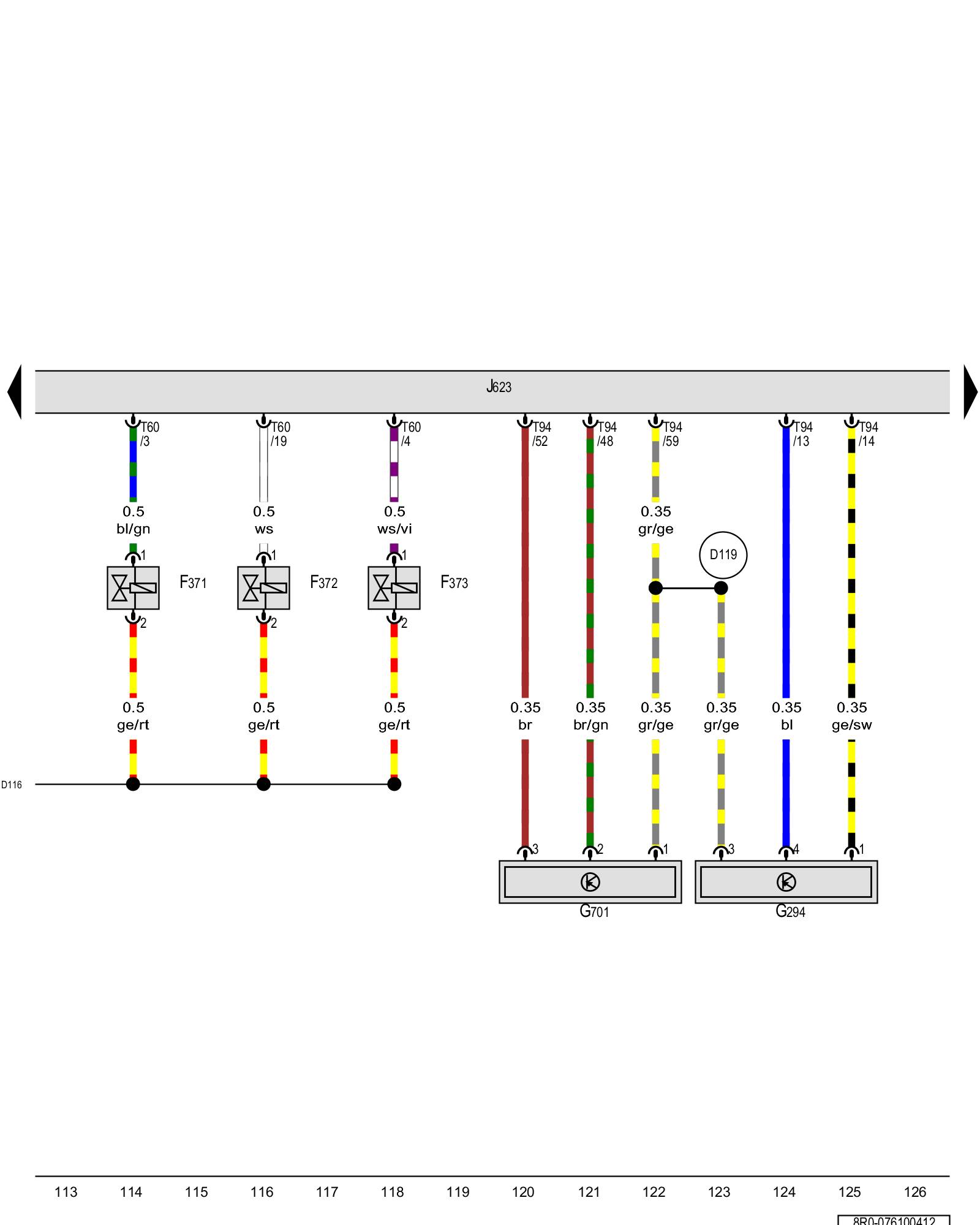

Cam adjustment actuator 6, Cam adjustment actuator 7, Cam adjustment actuator 8, Transmission neutral position sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F371 - Cam adjustment actuator 6 Locations

F372 - Cam adjustment actuator 7 Locations

F373 - Cam adjustment actuator 8 Locations

G294 - Brake booster pressure sensor

G701 - Transmission neutral position sensor

J623 - Engine control module Control Modules in Front Part Of Vehicle

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

(D116) - Connection (14) (in engine compartment wiring harness)

(D119) - Connection (17) (in engine compartment wiring harness)
