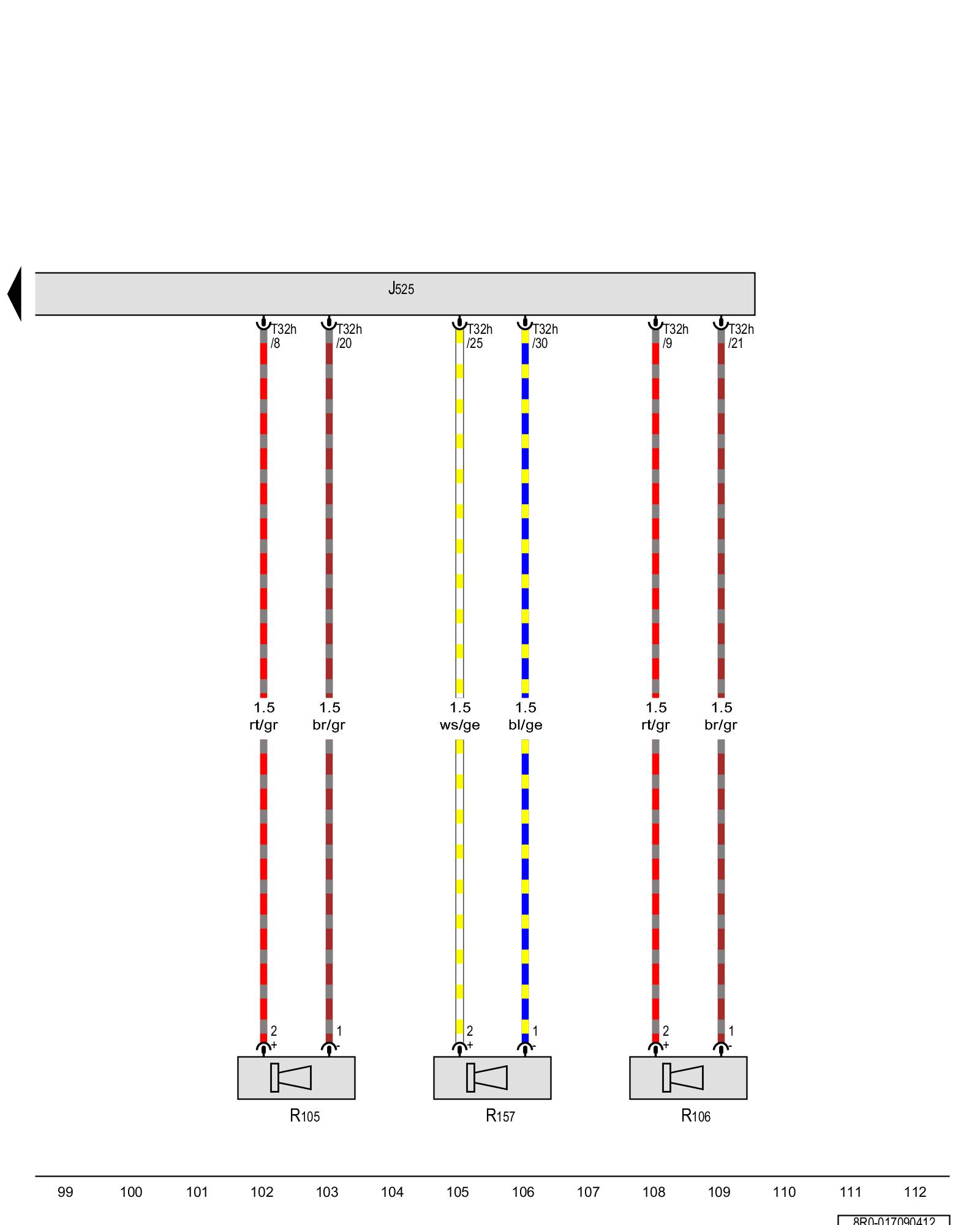

Diagram 17/9 (Tracks 99-112)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Left rear midrange speaker, Right rear midrange speaker, Subwoofer in rear shelf





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Control Modules in rear part of vehicle, overview

R105 - Left rear midrange speaker

R106 - Right rear midrange speaker

R157 - Subwoofer in rear shelf, in the spare wheel well Sound System Component Overview

T32h - 32-pin connector
