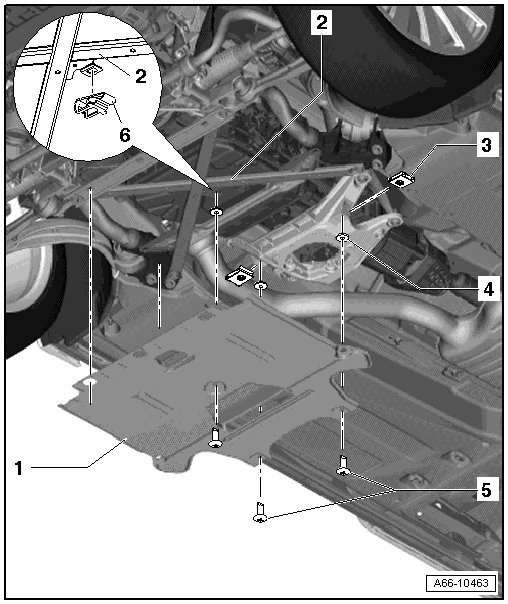

Rear Noise Insulation Assembly Overview

Rear Noise Insulation Assembly Overview






1 Rear Noise Insulation

• Loosen the 3 rear quick-release fasteners on the noise insulation.

• Loosen the quick-release fasteners - 6 - and remove the noise insulation toward the rear.

2 Cross brace

3 Spring nut

• Slide sideways into the transmission cross member.

4 Window

5 Quick-Release Fastener

• Rotate 180° to the left to remove.

• When installing, the connection must engage when rotating.

6 Spring Nut

• Slide into the cross brace.
