Pass-Through Door Cushion

Pass-Through Door Cushion

Special tools, testers and auxiliary items required

• Special Pop Rivet Pliers (V.A.G 1753A)

• Drill

• 4 mm drill bit

• Protective eyewear

Removing






- Remove the cover for the pass-through door. Refer to => [ Pass-Through Door Cover ] Pass-Through Door Cover.


Eye injury risk.

• Wear protective eyewear!

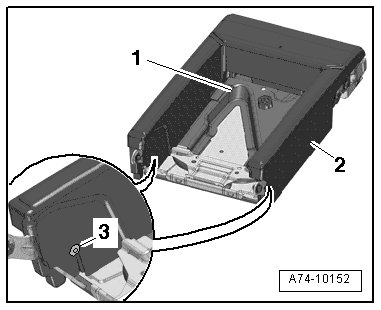

- Remove the rivets - 3 - and remove the cushion - 2 - from the pass-through door - 1 -.

Installation

To install, perform the steps used in removal in reverse order.
