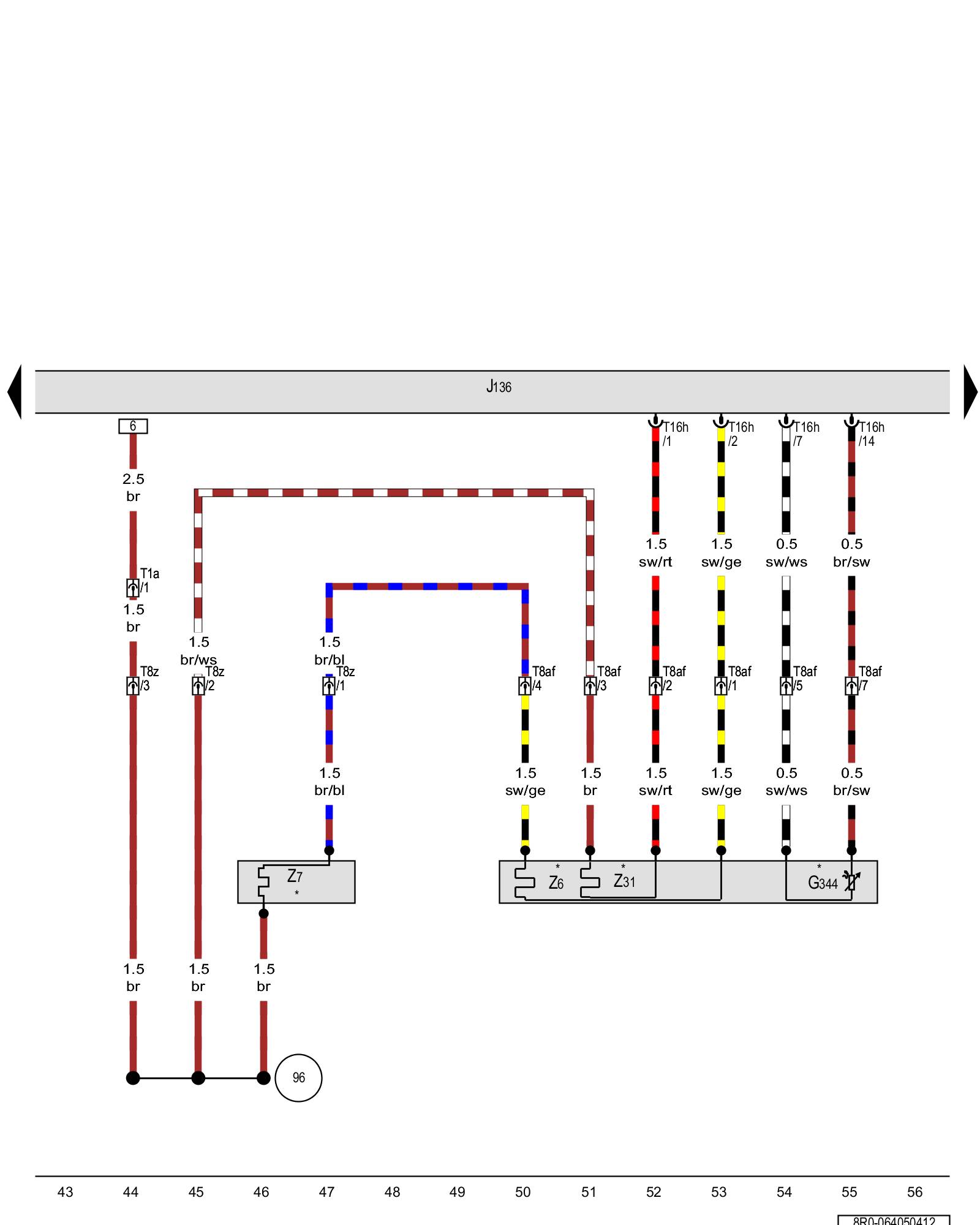

Diagram 64/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left front seat temperature sensor, Memory seat/steering column adjustment control module, Driver seat heating element, Driver backrest heating element





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G344 - Left front seat temperature sensor Power Front Seat Component Overview

J136 - Memory seat/steering column adjustment control module Overview of Control Modules in interior of vehicle

T1a - Single connector, under the seat

T8af - 8-pin connector

T8z - 8-pin connector

T16h - 16-pin connector

Z6 - Driver seat heating element Power Front Seat Component Overview

Z7 - Driver backrest heating element Power Front Seat Component Overview

Z31 - Driver seat bolster heater Power Front Seat Component Overview

(96) - Ground connection 1 (in heated seats wiring harness)

* - Only for vehicles with seat ventilation
