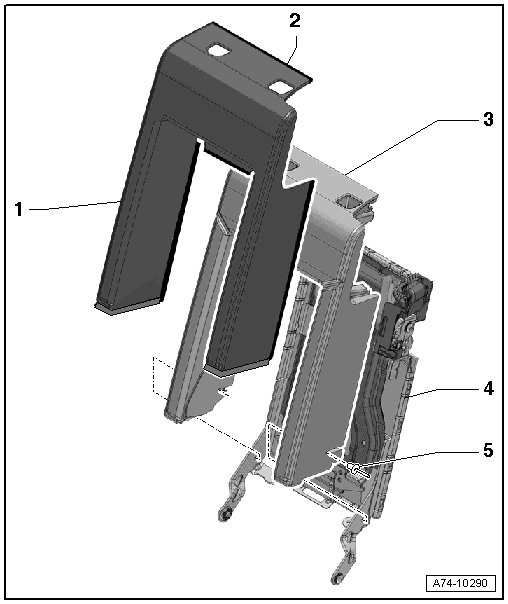

Pass-Through Door Cover and Cushion Overview

Pass-Through Door Cover and Cushion Overview






1 Cover

• Removing and installing, refer to => [ Pass-Through Door Cover ] Pass-Through Door Cover.

2 Retaining Strip

• Sewn into cover.

• For attaching the cover to the pass-through door.

3 Cushion

• Removing and installing, refer to => [ Pass-Through Door Cushion ] Pass-Through Door Cushion.

4 Pass-Through Door

• Removing and installing, refer to => [ Pass-Through Cover ] Pass-Through Cover.

• Glue to the luggage compartment floor, refer to => [ Pass-through Door, Gluing with Luggage Compartment Cover ] Pass-Through Door, Gluing With Luggage Compartment Cover.

5 Rivet

• Quantity: 2
