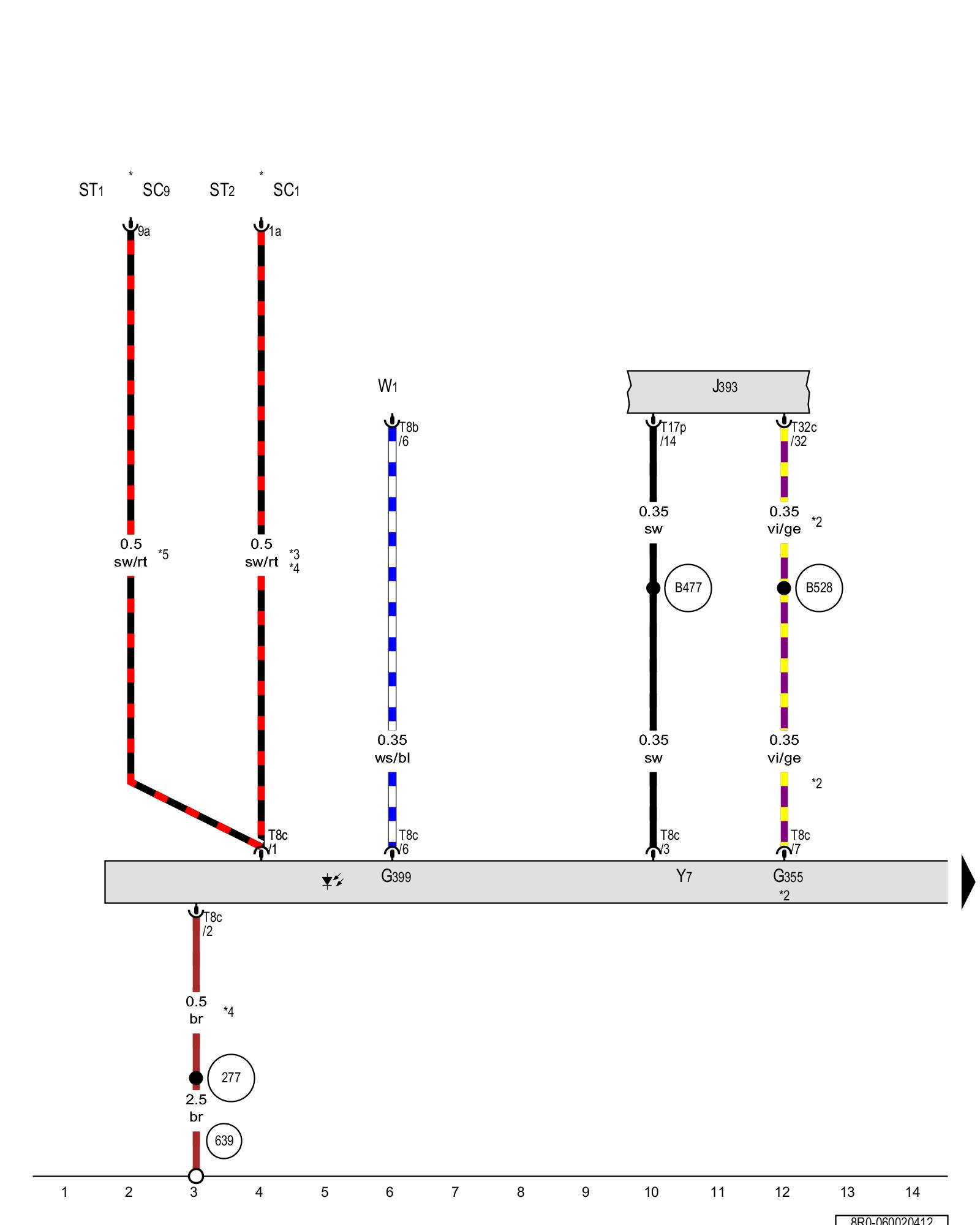

Diagram 60/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Humidity sensor, Automatic dimming interior rearview mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G355 - Humidity sensor Locations A/C System Inside Pass Compartment

G399 - Light recognition sensor

J393 - Comfort system central control module Control Modules in rear part of vehicle, overview

ST1 - Fuse panel 1

SC1 - Fuse 1 (on fuse panel C) Overview Of Fuses

ST2 - Fuse panel 2

SC9 - Fuse 9 (on fuse panel C) Overview Of Fuses

T8b - 8-pin connector

T8c - 8-pin connector

T17p - 17-pin connector Locations

T32c - 32-pin connector Locations

W1 - Front interior lamp

Y7 - Automatic dimming interior rearview mirror Overview of Control Modules in interior of vehicle

(277) - Ground connection 3 (in interior wiring harness)

(639) - Ground connection on left A-pillar Locations

(B477) - Connection 13 (in main wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Only for vehicles with a humidity sensor

*3 - from May 2009

*4 - Diameter depends on equipment

*5 - through April 2009

Next Diagram 60/3 (Tracks 15-28)
