Central Locking Component Overview

Central Locking Component Overview

• Central locking functions electronically.

• Actuators in doors are integrated in the door lock and have 2 motors.

• Actuators cannot be replaced separately.

• The first motor locks the door and the second motor locks the interior door mechanism (Safe function).

• Now, doors also can no longer be opened from the interior.

• After an accident in which the airbag deploys, the central locking system control module opens any doors which were locked.

• Central locking control module is located in right rear side panel.

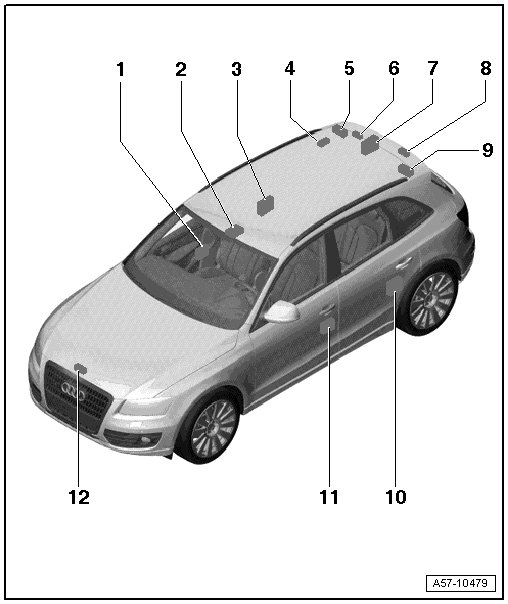

Component Overview





1 Front Passenger Door Control Module (J387)

2 Anti-Theft Alarm System Sensor (G578)

3 Right Rear Door Control Module (J389)

4 Fuel Filler Door Unlock Motor (V 155)

5 Rear Lid Control Module (J605)

6 Vehicle Positioning System Interface Control Module (J843)

• Removing and Installing, refer to => [ Vehicle Positioning System Interface Control Module ] Vehicle Positioning System Interface Control Module.

7 Comfort System Central Control Module (J393)

• Removing and Installing, refer to => [ Comfort System Central Control Module ] Comfort System Central Control Module

8 Rear Lid Release Motor (V139)

9 Rear Lid Control Module (J756)

10 Left Rear Door Control Module (J388)

11 Driver Door Control Module (J386)

12 Front Hood Switch (F266)
