Front Door Trim

Window Frame Trim

Special tools, testers and auxiliary items required

• Removal Wedge (3409)

• Removal and installation are same for right and left.

Removing






- Lower the door window.

- Remove the front door trim panel. Refer to => [ Front Door Trim ] Front Door Trim.

- Remove the treble speaker trim. Refer to => [ Treble Speaker Trim ] Treble Speaker Trim.

- Vehicles with treble speakers: Remove the treble speaker.

- Versions with lane change assistance: remove the lane change assistance button (E530).

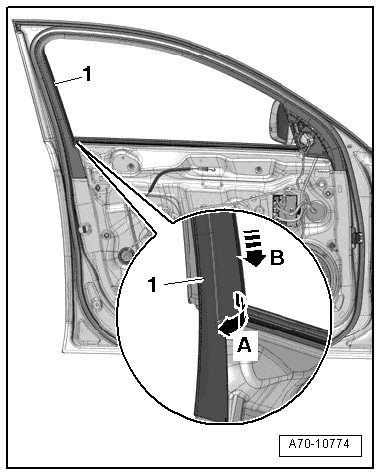

- Pry the window frame trim - 1 - out using the (3409) starting at the bottom and then all around the window frame guide - arrow A -.

- Remove the window frame trim from the window frame - arrow B - at the same time.

- Remove the window frame trim - 1 - from the window guide - arrows -.






Installation






- Install the window frame trim - 1 - into the window guide - 2 - starting on the inside at the bottom - arrow -.

- Fold the window frame trim - 1 - over the window guide - 2 - - arrow - using the (3409).






• Be careful not to pull the window guide off the door frame.

- Pull the (3409) the entire length between the window frame trim - 1 - and door seal molding - 2 - and at the same time push the door frame trim toward the door frame.






Further installation is performed in the reverse order of removal.
