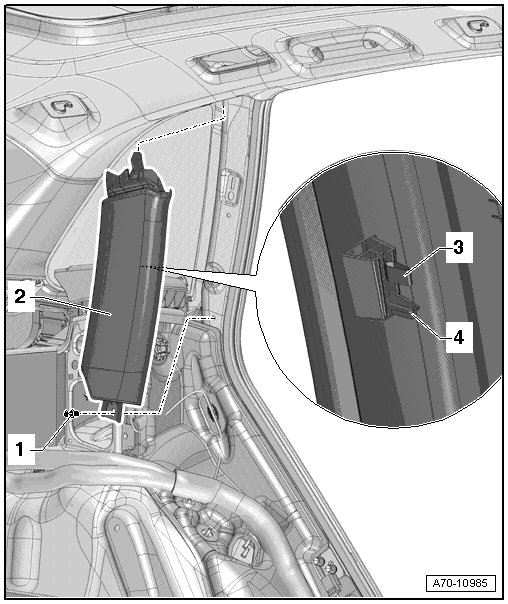

C-pillar Trim Overview
C-pillar Trim Overview
1 Expanding Clip
2 C-pillar Trim
• Removing and installing, refer to => [ C-Pillar Trim ] C-Pillar Trim.
3 Clips
• Install in the trim.
• Replace if damaged or deformed.
4 Centering Pins
C-pillar Trim Overview
1 Expanding Clip
2 C-pillar Trim
• Removing and installing, refer to => [ C-Pillar Trim ] C-Pillar Trim.
3 Clips
• Install in the trim.
• Replace if damaged or deformed.
4 Centering Pins
