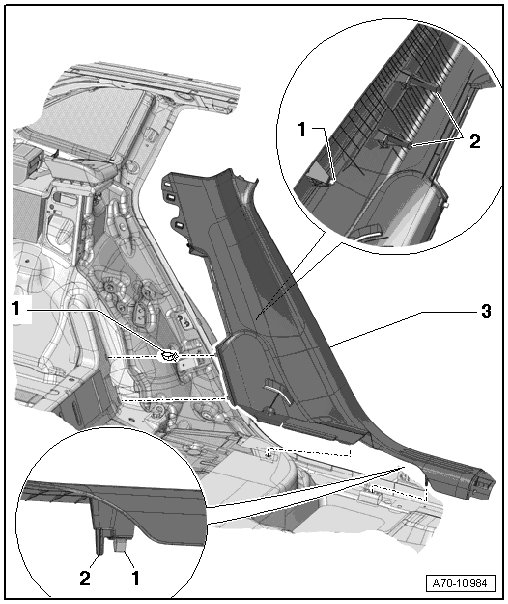

Rear Sill Panel Trim Overview

Rear Sill Panel Trim Overview






1 Clips

• Insert in the sill panel strip.

• Quantity: 5

• Replace if damaged or deformed.

2 Centering Pins

3 Rear Sill Panel Trim

• Special equipment

• Driver side rear thorax airbag igniter (N201).

• Passenger side rear thorax airbag igniter (N202).

• Removing and installing, refer to => [ Rear Sill Panel Trim ] Rear Sill Panel Trim.
