Front Sill Panel Trim

Front Sill Panel Trim

Special tools, testers and auxiliary items required

• Removal Wedge (3409)

Removing






- Remove the instrument panel side cover. Refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover.

- Remove the A-pillar gap cover. Refer to => [ A-Pillar Gap Cover ] A-Pillar Gap Cover.

Driver side

- Remove the cable operating lever. Refer to => [ Cable Operating Lever ] Cable Operating Lever.

- Remove the front sill panel trim screw - 2 -.

Procedure for both sides of vehicle

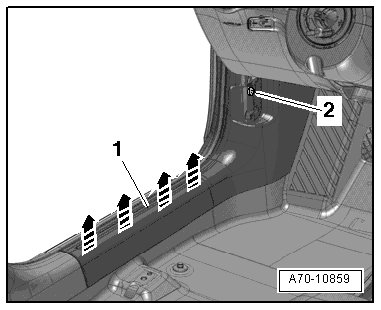

- Unclip the front sill panel strip - 1 - from the sill panel beginning at the front using the (3409) - arrows -.

- Pull the front sill panel trim toward the rear and out of the footrest/floor covering.

- Disengage the front sill panel trim on the operating lever mount and remove it.

Installation

Installation is performed in the reverse of removal, but note the following:

• If the sill panel trim clamps remain in the body mounting points, remove them and insert them in the trim.

• Check clamps for damage or deformation, replace if necessary.

Driver side

- Engine the front sill panel trim to the operating lever mount and push it into the footrest.

Passenger side

- Slide the front sill panel trim guide into the carpet.

Procedure for both sides of vehicle

- Mount the front sill panel trim onto the sill panel and cover the rubber lip with the door seal.

Tightening specifications, refer to => [ Front Sill Panel Trim Overview ] Front Sill Panel Trim Overview.
