A-Pillar Gap Cover

A-Pillar Gap Cover

• Removal and installation are same for right and left.

Removing






- Remove the instrument panel side cover. Refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover.

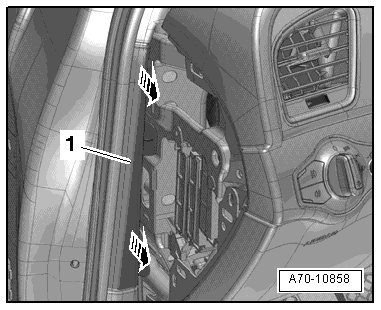

- Remove the gap cover - 1 - from the A-pillar trim and the sill trim - arrow -.

- Remove the gap cover upward from the clips on the A-pillar.

Installation

To install, perform the steps used in removal in reverse order.
