Coat Hooks
Coat Hooks
Coat Hooks
Removing
-

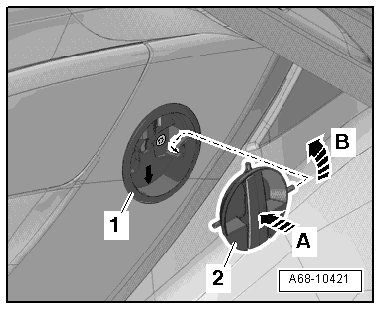

Push the coat hook -
2
- into the mount -
1
- -
arrow A
-.
-
Turn the coat hook counter-clockwise -
arrow B
- and remove.
Installation
To install, perform the steps used in removal in reverse order.
