Coat Hook Mount

Coat Hook Mount

Removing






- Remove the coat hook. Refer to => [ Coat Hooks ] Coat Hooks.

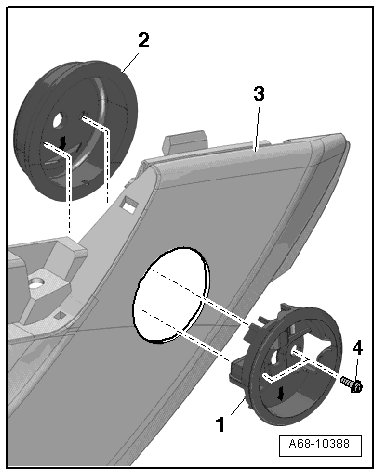

- Remove the screws - 4 - and remove the coat hook mount - 1 -.

- Carefully pull the center console - 3 - on the side from the center tunnel wall and remove the counterholder - 2 - on the back side of the center console.

Installation

Installation is reverse of removal, but note the following:

- Align the mount and coat hook counterholder in the center console.

• The arrow points downward.

Tightening specifications, refer to => [ Center Console Components Overview ] Center Console Components Overview.
