Rear Ashtray







Rear Ashtray

Removing






- Open the rear ashtray.

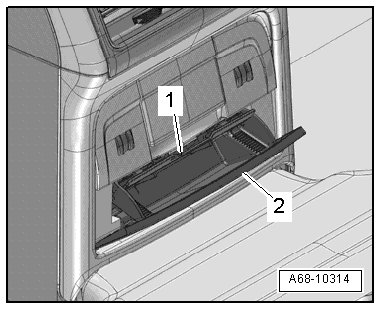

- Press the trim - 1 - down and remove the rear ashtray - 2 -.

Installation

- Install the lower ashtray into the mount and close it.
