Center Console Trim Panel

Center Console Trim Panel

Removing






- Remove center console. Refer to => [ Center Console ] Center Console.

- Rotate center console.

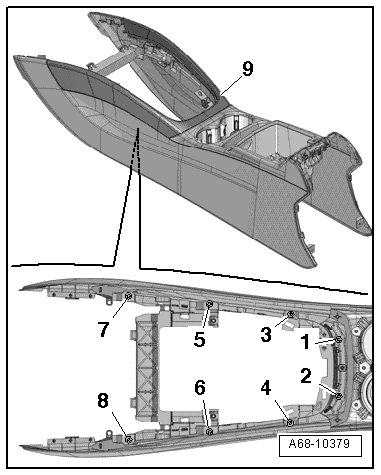

- Remove the bolts - 1 through 8 - and the center console trim panel - 9 -.

Installation

Installation is reverse of removal, but note the following:

- Tighten the bolts in a - 1 to 8 - sequence.

Tightening specifications, refer to => [ Center Console Components Overview ] Center Console Components Overview.
