Trunk / Liftgate Weatherstrip: Service and Repair

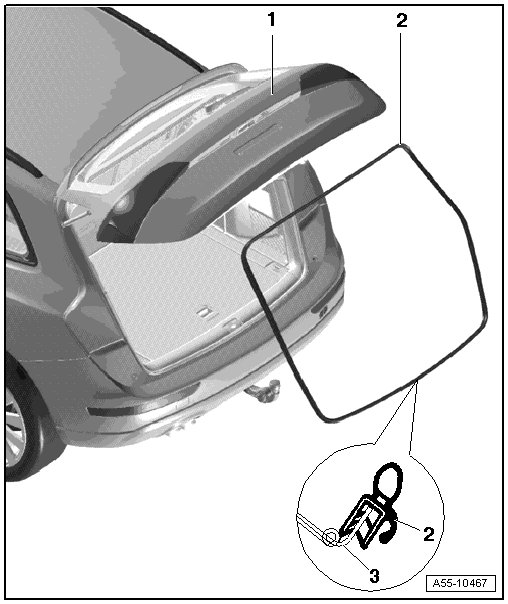

Rear Lid Seal






1 Rear Lid Seal

• Removal:

- Prop up and secure rear lid in open position.

- Remove the rear lid spoiler. Refer to => [ Roof Spoiler Assembly Overview ] Roof Spoiler Assembly Overview.

- Remove the gas-filled strut from the left and right ball studs.

- Remove the seal from the flange on the body all the way around.

- When installing, align the seal to the upper marking- arrow - and then press it onto the flange all the way around.

2 Rear Lid
