Emergency Release Cover







Emergency Release Cover

Special tools, testers and auxiliary items required

• Removal Wedge (3409)

Removing

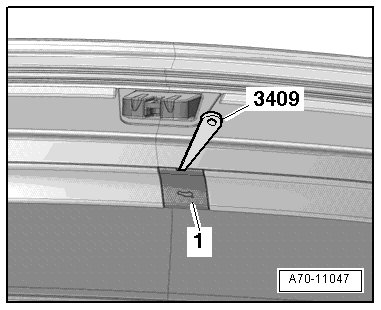

- Place the (3409) on the opening and unclip the emergency release cover - 1 - from the lower trim panel.

Installation

- Press the emergency release cover until it engages audibly.
