Rear Lid Trim Panel, Upper

Rear Lid Trim Panel, Upper

Special tools, testers and auxiliary items required

• Pry Lever (80 - 200)

Removing






- Remove the lower rear lid trim panel. Refer to => [ Rear Lid Trim Panel, Lower ] Rear Lid Trim Panel, Lower.

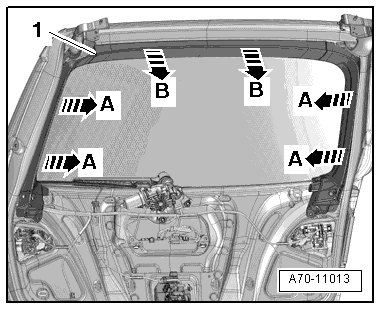

- First unclip the upper side trim - 1 - using the (80 - 200) from the rear lid - arrows A -.

- Then unclip the upper trim using the (80 - 200) from the rear lid - arrows B - and remove it.

Installation






Installation is reverse of removal, but note the following:

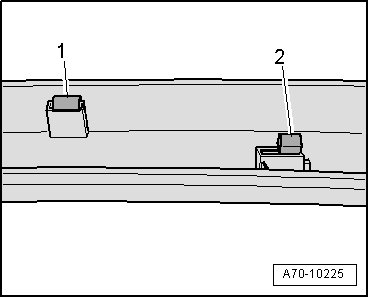

• If the trim clamps - 2 - remain in the rear lid mounting points, remove them and insert them in the trim.

• Check clamps for damage or deformation, replace if necessary.

- Make sure all the rubber buffers - 1 - are in the trim.

- Insert the trim panel first behind the side window frame in the rear lid.

- Install the upper rear lid trim first at the top and then along the sides.
