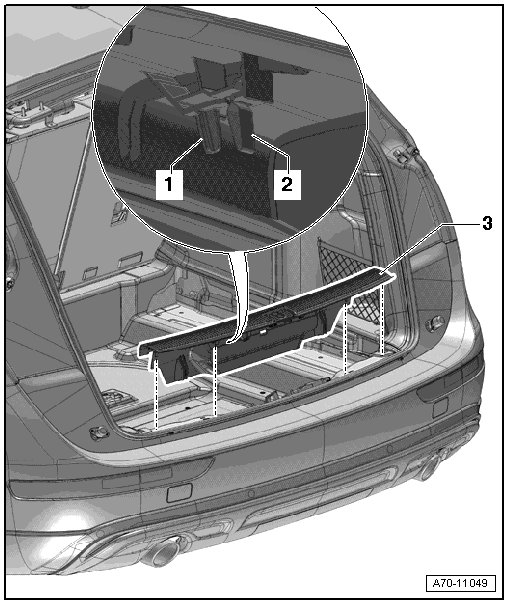

Rear Lid End Panel Trim Panel Overview

Rear Lid End Panel Trim Panel Overview






1 Centering Pins

2 Clips

• Quantity: 4

• Install in the trim.

• Replace if damaged or deformed.

3 Rear Cross Panel Trim

• Removing and installing, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.
