Screen Separator Mount







Screen Separator Mount

• Removal and installation are same for right and left.

Removing

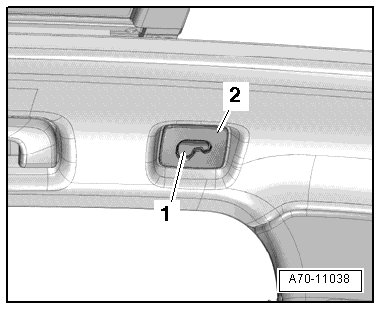

- Press the cover - 1 - toward the inside and remove the screws on the screen separator mount - 2 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Screen Separator Wall Overview ] Screen Separator Wall Overview.
