Retaining Tracks

Retaining Tracks

• Removal and installation are same for right and left.

Removing






- Remove the rear luggage compartment floor.

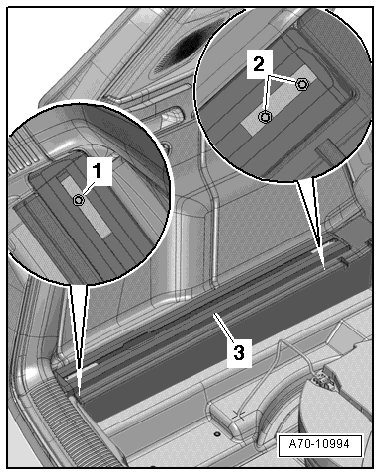

- Remove the bolts - 1 and 2 - and then remove the retaining track - 3 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Luggage Compartment Floor with Rail Overview ] Luggage Compartment Floor With Rail Overview.
