Rear Bracket

Rear Bracket

• Removal and installation are same for right and left.

Removing






- Remove the gap cover:

• Vehicles without a retaining rail. Refer to => [ Gap Cover ] Gap Cover.

• Vehicles with retaining rail. Refer to => [ Gap Cover With Rail ] Gap Cover With Rail.

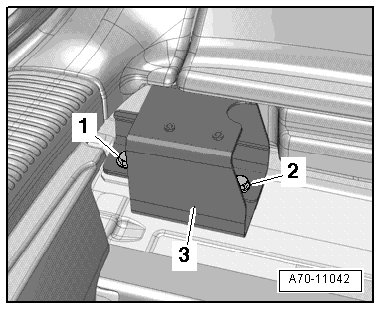

- Remove the screws - 1 and 2 - and remove the rear bracket - 3 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Luggage Compartment Floor with Gap Cover Overview ] Luggage Compartment Floor with Gap Cover Overview.
