Coat Hooks

Coat Hooks

Special tools, testers and auxiliary items required

• Pry Lever (80 - 200)

• Removal and installation are same for right and left.

Removing

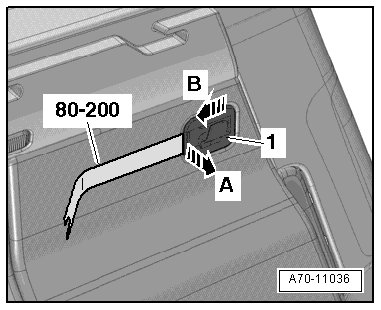

- Lift the rear coat hook - 1 - slightly off the side trim panel using the (80 - 200) - arrow A - and then pull it off toward the rear - arrow B -.

Installation

- Install the coat hook into the side trim panel and push it in until it audibly latches.
