Battery Recess Cover







Battery Recess Cover

Removing






- Remove the spare wheel well trim panel. Refer to => [ Spare Wheel Well Trim ] Spare Wheel Well Trim.

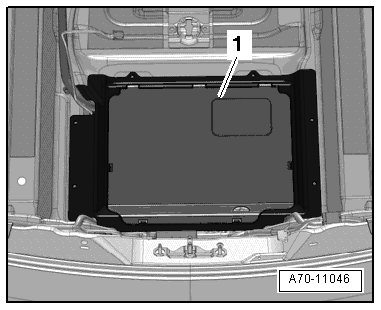

- Remove the battery recess cover - 1 -.

Installation

To install, perform the steps used in removal in reverse order.
