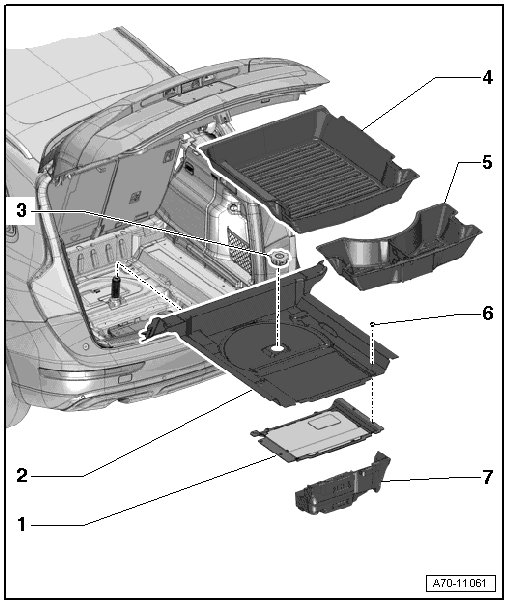

Luggage Compartment Trim Panel and Battery Recess Cover Overview

Luggage Compartment Trim Panel and Battery Recess Cover Overview






1 Battery Recess Cover

• Removing and installing, refer to => [ Battery Recess Cover ] Battery Recess Cover.

2 Trim panel

• For the spare wheel well.

• Removing and installing, refer to => [ Spare Wheel Well Trim ] Spare Wheel Well Trim.

3 Nut

• For spare wheel mounting.

• When tightening, it must audibly click into place, otherwise, turn some more.

4 Large Dirt Shield

• Special equipment

5 Small Dirt Shield

• Special equipment

6 Clip

7 Tool Box
