Luggage Compartment Trim Overview

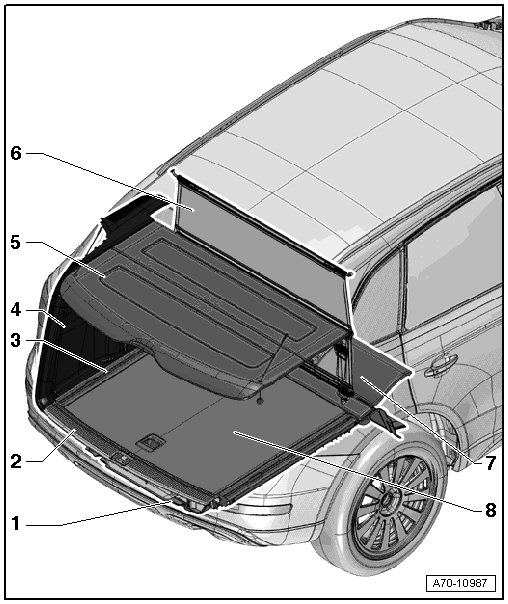

Luggage Compartment Trim Overview






1 Spare Wheel Well Trim

• Overview, refer to => [ Luggage Compartment Trim Panel and Battery Recess Cover Overview ] Luggage Compartment Trim Panel and Battery Recess Cover Overview.

• Removing and installing, refer to => [ Spare Wheel Well Trim ] Spare Wheel Well Trim.

2 Rear Cross Panel Trim

• Overview, refer to => [ Rear Lid End Panel Trim Panel Overview ] Rear Lid End Panel Trim Panel Overview.

• Removing and installing, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.

3 Gap Cover Or Retaining Track

• Equipment level, luggage compartment floor with gap cover, overview. Refer to => [ Luggage Compartment Floor with Gap Cover Overview ] Luggage Compartment Floor with Gap Cover Overview.

• Removing and installing, refer to => [ Gap Cover ] Gap Cover.

• Equipment level, luggage compartment floor with retaining track, overview. Refer to => [ Luggage Compartment Floor with Rail Overview ] Luggage Compartment Floor With Rail Overview.

• Removing and installing, refer to => [ Retaining Tracks ] Retaining Tracks.

4 Luggage Compartment Side Trim

• Overview, refer to => [ Luggage Compartment Side Trim Overview ] Luggage Compartment Side Trim Overview.

• Removing and installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim.

5 Luggage Compartment Cover

• Overview, refer to => [ Luggage Compartment Cover Overview ] Luggage Compartment Cover Overview.

• There are two different versions.

• Add-on parts, replacing, refer to => [ Luggage Compartment Cover Attachments ] Luggage Compartment Cover Attachments.

6 Screen Separator Wall

• Overview, refer to => [ Screen Separator Wall Overview ] Screen Separator Wall Overview.

7 Front Luggage Compartment Floor

• Equipment level, luggage compartment floor with gap cover, overview. Refer to => [ Luggage Compartment Floor with Gap Cover Overview ] Luggage Compartment Floor with Gap Cover Overview.

• Removing and installing, refer to => [ Front Luggage Compartment Floor ] Front Luggage Compartment Floor.

• Equipment level, luggage compartment floor with retaining track, assembly overview. Refer to => [ Luggage Compartment Floor with Rail Overview ] Luggage Compartment Floor With Rail Overview.

• Removing and installing, refer to => [ Front Luggage Compartment Floor With Rails ] Front Luggage Compartment Floor With Rails.

8 Rear Luggage Compartment Floor
