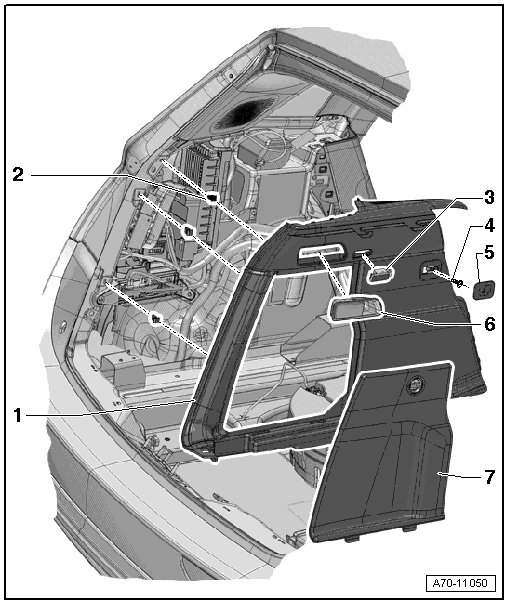

Luggage Compartment Side Trim Overview

Luggage Compartment Side Trim Overview






1 Luggage Compartment Side Trim

• Removing and installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim.

2 Clips

• Quantity: 3

• Install in the trim.

• Replace if damaged or deformed.

3 Luggage Compartment Lamp

4 Bolt

• 3 Nm

5 Coat Hooks

• Removing and installing, refer to => [ Coat Hooks ] Coat Hooks.

6 Rear Backrest Release

• Overview, refer to => [ Backrest Release Overview ] Backrest Release Overview.

• Removing and installing, refer to => [ Backrest Release Actuator ] Backrest Release Actuator.

7 Cover

• For the luggage compartment side trim.
