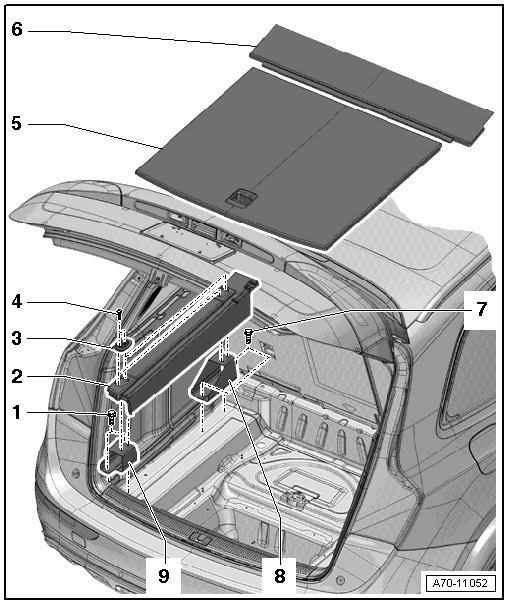

Luggage Compartment Floor with Gap Cover Overview

Luggage Compartment Floor with Gap Cover Overview






1 Bolt

• 20 Nm

• Quantity: 2

2 Gap Cover

• Removing and installing, refer to => [ Gap Cover ] Gap Cover.

3 Tie-Down Eye

• Quantity: 2

• Removing and installing, refer to => [ Tie-Downs ] Tie-Downs.

4 Bolt

• Quantity: 4

• 6 Nm

5 Rear Luggage Compartment Floor

6 Front Luggage Compartment Floor

• Removing and installing, refer to => [ Front Luggage Compartment Floor ] Front Luggage Compartment Floor.

7 Bolt

• Quantity: 2

• 20 Nm

8 Front Bracket

• Removing and installing, refer to => [ Front Bracket ] Front Bracket.

9 Rear Bracket

• Removing and installing, refer to => [ Rear Bracket ] Rear Bracket.
