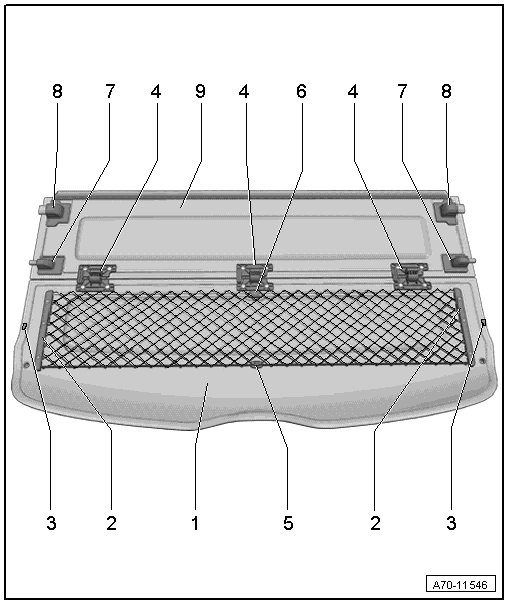

Luggage Compartment Cover Overview

Luggage Compartment Cover Overview






1 Rear Luggage Compartment Cover

•

There are two different versions for the luggage compartment cover.

Version 1

The underside is smooth and all attachments are installed. The large bolt is for installing the hinges and the small bolt for the storage net attachments.

Version 2

The underside is made of material and, except for the D-pillar protection, all of the attachments are riveted in place.

• With version 2, only the D-pillar protection can be replaced. Riveted components cannot be replaced.

2 Rail For Storage Net 2x

• Depending on the version: either bolted or riveted in place.

• Small bolt

• 1.6 Nm

• The rails for versions 1 and 2 are different.

3 D-pillar Protector 2x

• 1.6 Nm

• Bolted in place

• Bolt

4 Hinge 3x

• 1.6 Nm

• Depending on the version: either bolted or riveted in place.

• Large bolt

• The two outside hinges are the same, but the center one is different.

5 Mount For The Storage Net

• 1.6 Nm

• Depending on the version: either bolted or riveted in place.

• Small bolt

6 Mounts For The Storage Net

• 1.6 Nm

• Depending on the version: either bolted or riveted in place.

• Small bolt

7 Small Mount 2x

• Depending on the version: either bolted or riveted in place.

• Large bolt

• 1.6 Nm

8 Large Mount 2x

• 1.6 Nm

• Depending on the version: either bolted or riveted in place.

• Large bolt

9 Front Luggage Compartment Cover

There are two different versions for the luggage compartment cover.

Version 1

The underside is smooth, the hinges and mounts are installed using the large bolt.

Version 2

The underside is made of material and all of the attachments are riveted in place.

• With version 2, only the D-pillar protection can be repaired. Riveted components cannot be replaced.
