Rear Door Lamps and Switches Overview

Rear Door Lamps and Switches Overview

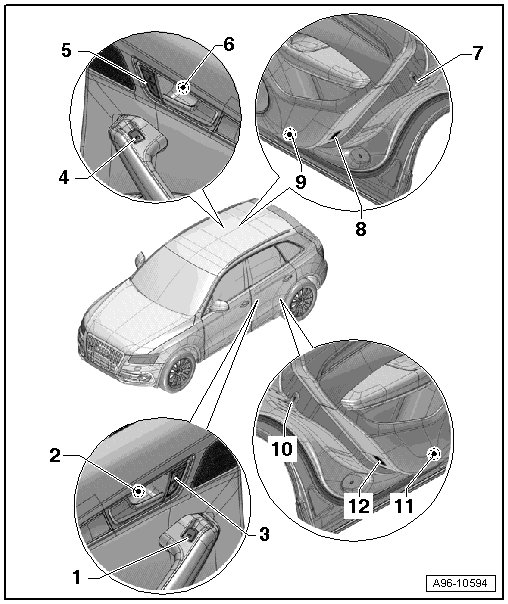

1 Left Rear Power Window Switch In Left Rear Door (E52)

• Removing and installing, refer to => [ Window Regulator Power Window Switches (E52)/(E54) ] Window Regulator Power Window Switches (E52)/(E54)

2 Left Rear Door Opener Illumination Bulb (L110)

• Removing and installing, refer to => [ Rear Door Opener Illumination Bulb (L110)/(L111) ] Rear Door Opener Illumination Bulb (L110)/(L111)

3 Left Rear Interior Locking Switch (E273)

• Removing and installing, refer to => [ Rear Door Interior Locking Switches (E273)/(E274) ] Rear Door Interior Locking Switches (E273)/(E274)

4 Right Rear Window Switch In Right Rear Door (E54)

• Removing and installing, refer to => [ Window Regulator Power Window Switches (E52)/(E54) ] Window Regulator Power Window Switches (E52)/(E54)

5 Right Rear Interior Locking Switch (E274)

• Removing and installing, refer to => [ Rear Door Interior Locking Switches (E273)/(E274) ] Rear Door Interior Locking Switches (E273)/(E274)

6 Right Rear Door Opener Illumination Bulb (L111)

• Removing and installing, refer to => [ Rear Door Opener Illumination Bulb (L110)/(L111) ] Rear Door Opener Illumination Bulb (L110)/(L111)

7 Right Rear Door Contact Switch (F11)

• Integrated in the door lock. Cannot be replaced separately if faulty.

8 Right Rear Door Warning Lamp (W38)

• 12V, 3 W

• Removing and installing, refer to => [ Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38) ] Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38)

9 Right Rear Entry Lamp (W34)

• 12V, 3 W

• Removing and installing, refer to => [ Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38) ] Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38)

10 Left Rear Door Contact Switch (F10)

• Integrated in the door lock. Cannot be replaced separately if faulty.

11 Left Rear Entry Lamp (W33)

• 12V, 3 W

• Removing and installing, refer to => [ Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38) ] Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38)

12 Left Rear Door Warning Lamp (W37)

• 12V, 3 W

• Removing and installing, refer to => [ Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38) ] Rear Entry Lamps (W33)/(W34) and Rear Door Warning Lamps (W37)/(W38)
