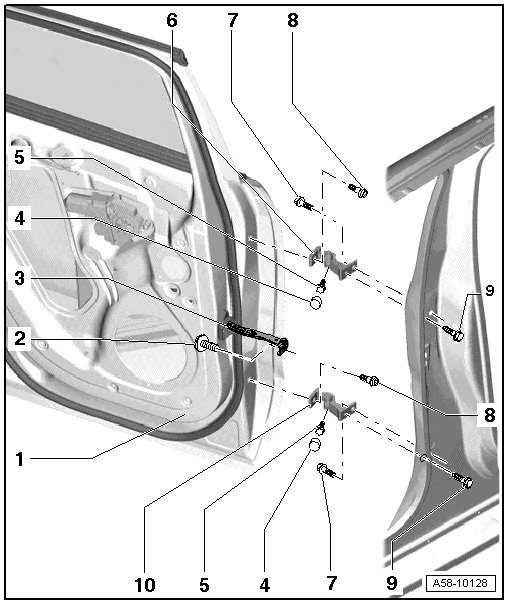

Door Assembly Overview

Door Assembly Overview






1 Door

2 Bolt

• 8 Nm

3 Door Arrester

4 Cover

• Place on the stud bolt

5 Stud Bolt

• 30 Nm

6 Upper Door Hinge

7 Bolt

• 32 Nm

8 Bolt

• The bolt is a fitting bolt so it is generally not necessary to adjust the door using it.

• If it is necessary to make an adjustment using these bolts, the bolt can be replaced with one of the same length and strength category.

• 45 Nm

9 Bolt

• 32 Nm

10 Bottom Door Hinge
