Front Door Lights and Switches Overview

Front Door Lights and Switches Overview

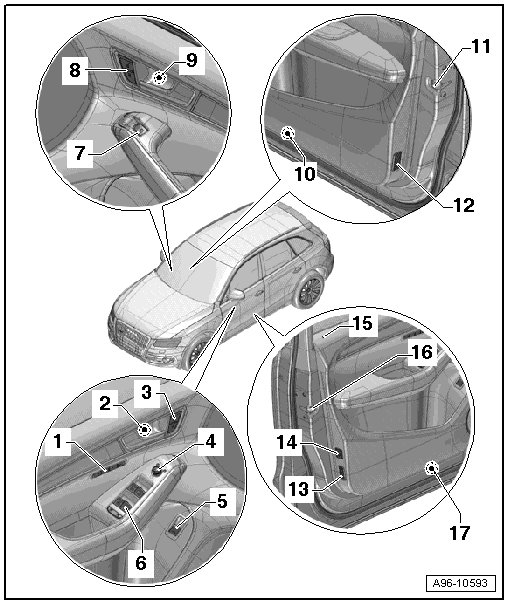

1 Driver Memory Seat Control Head (E97)

• Removing and installing, refer to => [ Driver Memory Seat Control Head (E97) ] Driver Memory Seat Control Head (E97)

2 Driver Door Opener Illumination Bulb (L108)

• Removing and installing, refer to => [ Door Opener Illumination Bulb (L108)/(L109) ] Door Opener Illumination Bulb (L108)/(L109)

3 Driver Interior Locking Switch (E150)

• Removing and installing, refer to => [ Driver and Front Passenger Interior Locking Switch (E150)/(E198) ] Driver and Front Passenger Interior Locking Switch (E150)/(E198)

4 Mirror Adjustment Switch

• Mirror adjusting switch (E43) or folding mirror adjustment switch (E168)

• Removing and installing, refer to => [ Mirror Adjusting Switch (E43) and Folding Mirror Adjustment Switch (E168) ] Mirror Adjusting Switch (E43) and Folding Mirror Adjustment Switch (E168)

5 Rear Lid Remote Unlock Switch (E188)

• Depending on equipment

• Removing and installing, refer to => [ Rear Lid Remote Unlock Switch (E188) ] Rear Lid Remote Unlock Switch (E188)

6 Power Window Control Head In Driver Door (E512)

• With left front window regulator switch (E40) and right front power window switch in driver door (E81)

• With the left rear window regulator switch in driver door (E53) , right rear window regulator switch in driver door (E55) and rear window regulator safety switch (E39)

• Window regulator switch, removing and installing, refer to => [ Window Regulator Switches and Power Window Control Head (E512)/(E107) ] Window Regulator Switches and Power Window Control Head (E512)/(E107)

7 Front Passenger Door Window Regulator Switch (E107)

• Removing and installing, refer to => [ Window Regulator Switches and Power Window Control Head (E512)/(E107) ] Window Regulator Switches and Power Window Control Head (E512)/(E107)

8 Front Passenger Interior Locking Switch (E198)

• Removing and installing, refer to => [ Driver and Front Passenger Interior Locking Switch (E150)/(E198) ] Driver and Front Passenger Interior Locking Switch (E150)/(E198)

9 Front Passenger Door Opener Illumination Bulb (L109)

• Removing and installing, refer to => [ Door Opener Illumination Bulb (L108)/(L109) ] Door Opener Illumination Bulb (L108)/(L109)

10 Right Front Entry Lamp (W32)

• 12V, 3 W

• Removing and installing, refer to => [ Entry Lights and Door Warning Lights ] Entry Lights and Door Warning Lights

11 Front Passenger Door Contact Switch (F3)

• Integrated in the door lock. Cannot be replaced separately if faulty.

12 Front Passenger Door Warning Lamp (W36)

• 12V, 3 W

• Removing and installing, refer to => [ Entry Lights and Door Warning Lights ] Entry Lights and Door Warning Lights

13 Driver Door Warning Lamp (W30)

• 12V, 3 W

• Removing and installing, refer to => [ Entry Lights and Door Warning Lights ] Entry Lights and Door Warning Lights

14 Interior Monitoring Switch (E183) or Alarm System Deactivation Switch (E217)

• Assembly overview, refer to => [ Ultrasonic Interior Monitoring Overview ] Ultrasonic Interior Monitoring Overview

15 Central Locking -SAFE- Indicator Lamp (K133)

• Removing and installing, refer to => [ Central Locking -SAFE- Indicator Lamp (K133) ] Central Locking -SAFE- Indicator Lamp (K133)

16 Driver Door Contact Switch (F2)

• Integrated in the door lock. Cannot be replaced separately if faulty.

17 Left Front Entry Lamp (W31)

• 12V, 3 W

• Removing and installing, refer to => [ Entry Lights and Door Warning Lights ] Entry Lights and Door Warning Lights
