Radio System Overview

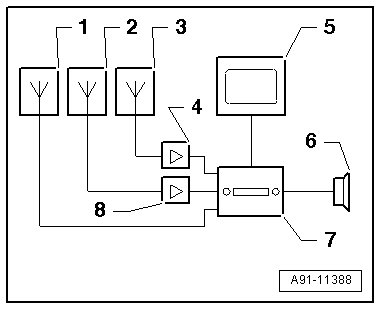

Radio System Overview





1. Roof antenna (R216) (satellite antenna (R170))

2. Antenna (R11) in the spoiler

3. Radio antenna 2 (R93) is located in the rear window.

4. The antenna amplifier (R24) is located on the bottom of the rear lid.

5. front information display control (J685) in the instrument panel

6. Sound Systems

7. Radio (R) in upper center console

8. Antenna Amplifier 3 (R112) is located on the top of the rear lid.
