Passenger Compartment Monitoring Switch and Alarm System -Off- Switch, Additional Cut-Out

Passenger Compartment Monitoring Switch and Alarm System -Off- Switch, Additional Cut-Out

• A replacement drive side door trim panel is supplied without the cut-out for the passenger compartment monitoring switch (E183) / (E217).

• If necessary, make a cut-out in the new trim panel as follows:

Procedure

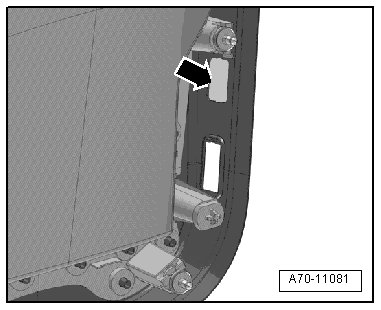

- Make the cut-out in the door trim panel for the passenger compartment monitoring switch; make the cut along the marking on the back of the panel.

- Install the front door trim panel. Refer to => [ Front Door Trim ] Front Door Trim.
