Home >> Audi >> 2011 >> A3 (8PA) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications

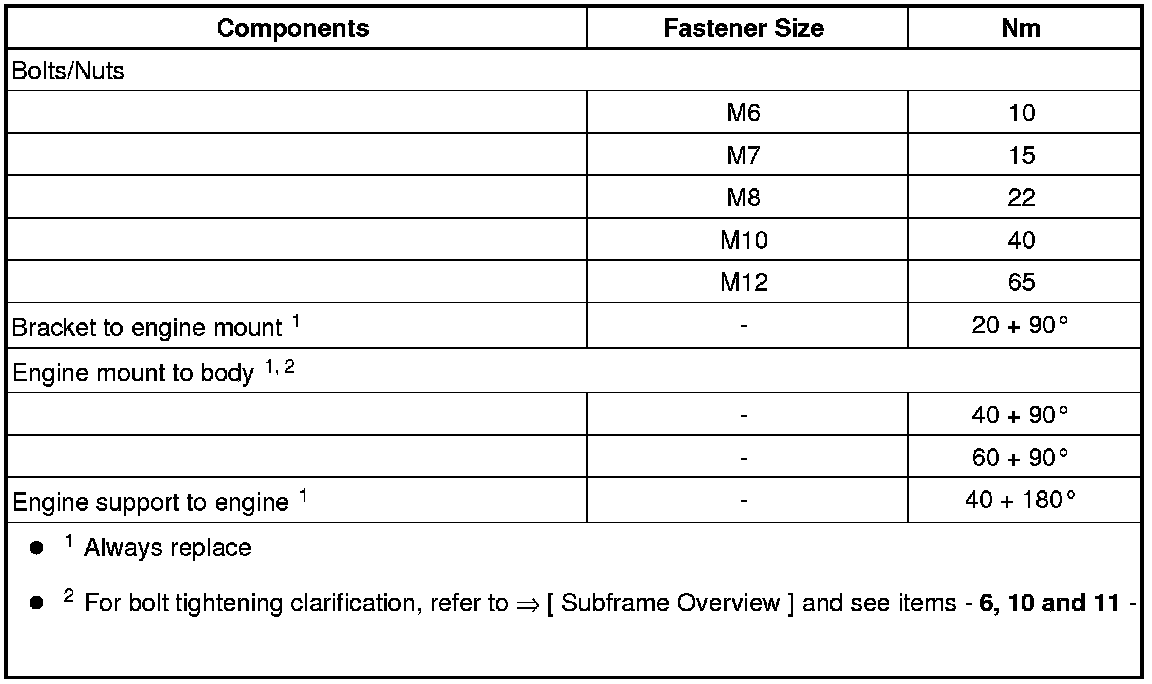

Fastener Tightening Specifications






Fastener Tightening Specifications

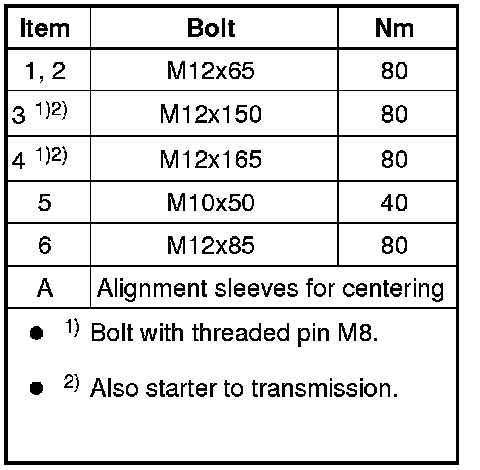

Secures the Manual Transmission to the Engine

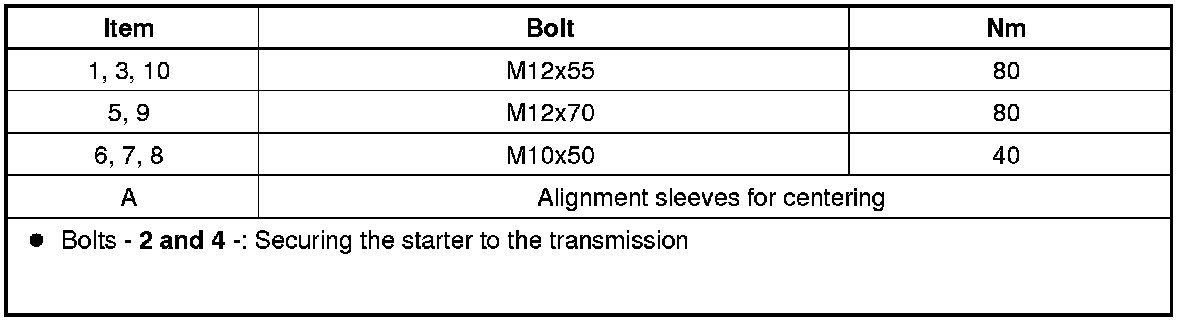

Mounting, S-Tronic Transmission to Engine
