Crankshaft Position Timing Ring: Service and Repair

Sensor Wheel

- Remove engine.

- Remove the transmission-side sealing flange. Refer to => [ Sealing Flange, Transmission Side ] Sealing Flange, Transmission Side.

- Remove the upper oil pan. Refer to => [ Upper Oil Pan ] Upper Oil Pan.

- Remove the balance shaft timing chain. Refer to => [ Balance Shaft Timing Chain ] Balance Shaft Timing Chain.

- Remove the connecting rod bearing cover.

- Remove the crankshaft bearing cover.

- Remove the crankshaft and the sensor wheel.

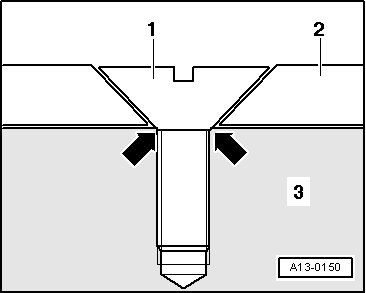

- Always replace sensor wheel - 2 - whenever bolts are removed - 1 -.






• After tightening a second time, the attachment point of the countersunk screws of the sensor wheel are so deformed that the screw heads lie on the crankshaft - 3 - - arrows - and the sensor wheel is loose underneath the screws.

• Installation of sensor wheel is only possible in one position - the bores are offset.

• Tightening specification, refer to => [ Crankshaft Overview ] Crankshaft Overview.
