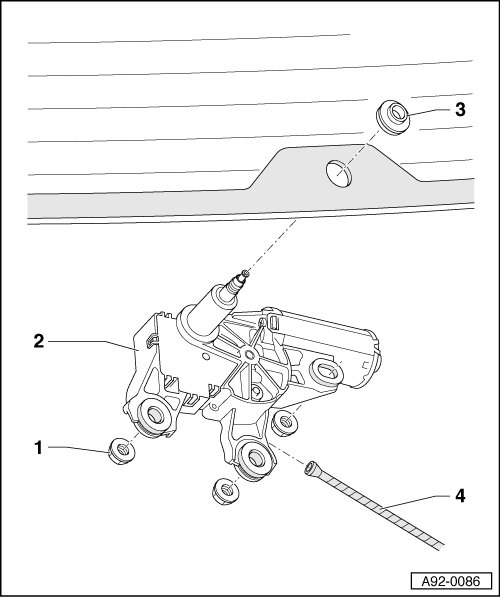

Rear Window Wiper Motor Assembly Overview

Rear Window Wiper Motor Assembly Overview






1 Securing Nut

• 8 Nm

2 Windshield Wiper Motor

• Removing and installing, refer to => [ Rear Window Wiper Motor ] Rear Window Wiper Motor

3 Rubber Seal

4 Washer Fluid Hose
