Ball Joint: Testing and Inspection

Ball Joint, Checking

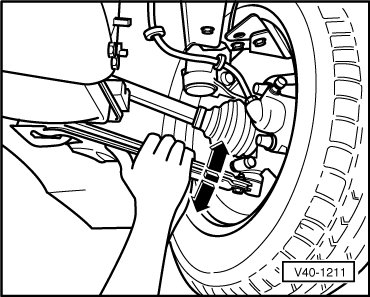

Checking Axial Play

- Pull transverse link down and press up again.

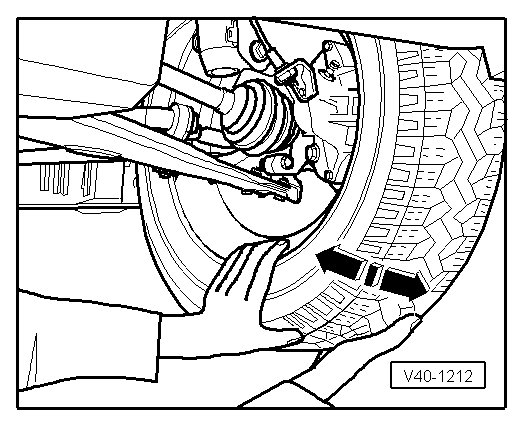

Checking Radial Clearance

- Press wheel firmly in and out at bottom.





• Observe lower ball joint while performing checks.

• There should not be any noticeable or visible play in either of the two checks.

• Make allowance for any wheel bearing play or play in strut mounting at top.

• Check rubber boot for damage, replace lower ball joint, if necessary.
