Steering Column Switch Module

Airbag Spiral Spring/Return Spring With Slip Ring

Special tools, testers and auxiliary items required

• Feeler gauge

Removing

• Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

- Remove steering column electronic systems control module (J527). Refer to => [ Steering Column Electronic Systems Control Module ] Steering Column Electronic Systems Control Module.

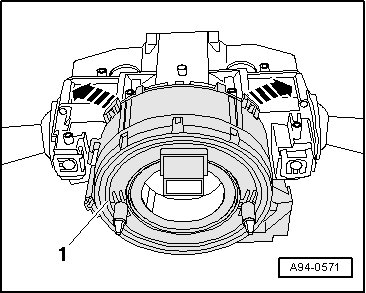

- Carefully release fasteners - arrows - and pull Airbag Spiral Spring/Return Spring With Slip Ring - 1 - off steering column switch module.






Installing

Install in reverse order of removal, noting the following:

- Make sure all fasteners and electrical connectors are properly engaged.
