Fog lamp Bulb, Through 05.2008

Fog lamp Bulb, through 05.2008

Removing






- Remove fog lamp. Refer to => [ Fog Lamp, through 05.2008 ] Fog Lamp, Through 05.2008.

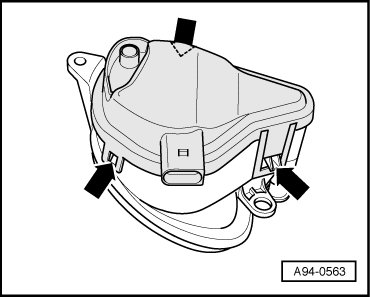

- Release the retaining tabs - arrows - and remove the cover.

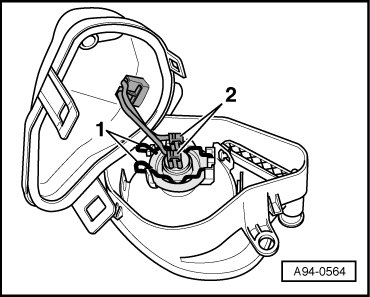

- Unplug connectors - 2 -.






- Disengage the wire clamp - 1 - and remove the bulb from the housing.

Installing

Install in reverse order of removal, noting the following:

- Insert bulb in housing, taking care not to touch glass bulb with bare hands.

• Pay attention to the installation position of the bulb.

- Secure bulb with spring clip.

- Reconnect harness connectors and close housing cover.

- Install fog lamp. Refer to => [ Fog Lamp, through 05.2008 ] Fog Lamp, Through 05.2008.
