Brake Pedal Overview, Automatic Transmission

Brake Pedal Overview, Automatic Transmission

• If the vehicle has a brake lamp switch depends on the model.


The path of the brake pedal must not be shortened via extra floor mats.

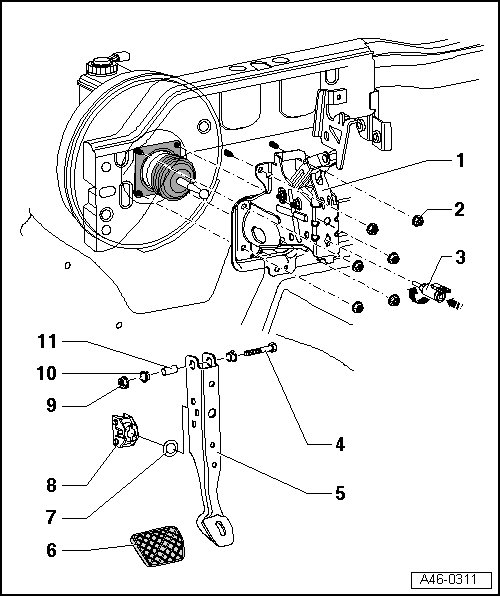

1 - Mounting Bracket

2 - Nut

• 25 Nm

3 - Brake Pedal Switch (F47)

• If the vehicle has a brake lamp switch depends on the model.

• Before installing the brake lamp switch, the brake pedal must be clipped together with the brake booster push rod => [ Brake Pedal and Brake Booster ] Brake Pedal and Brake Booster

• Removing and installing, adjusting, refer to => [ Brake Lamp Switch on Brake Pedal ] Brake Lamp Switch on Brake Pedal

• Lubricate plunger head with polycarbamide grease (G 052 142 A2).

4 - Hex Head Bolt

5 - Brake Pedal

• Removing and installing, refer to => [ Brake Pedal ] Brake Pedal

• Disconnect from brake booster, refer to => [ Brake Pedal and Brake Booster ] Brake Pedal and Brake Booster

• Lubricate mounting points with polyurea grease (G 052 142 A2) before installing

6 - Cover

7 - Ball Socket

8 - Mount

• For ball head of brake servo push rod

9 - Nut

• 25 Nm

10 - Bushing

• Lubricate mounting points with polyurea grease (G 052 142 A2) before installing

11 - Pivot Pin
