Water Drain Hoses Assembly Overview

Water Drain Hoses Assembly Overview

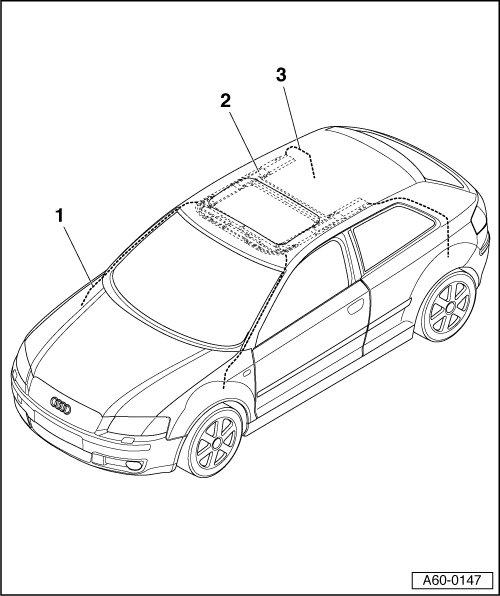

1 - Front Water Drain Hose

• Front water drain hoses are routed in - A - pillars and end in wheel housing above wheel housing liner

• Cleaning, refer to => [ Water Drain Hoses, Cleaning ] Procedures

2 - Frame

• For sunroof operation

3 - Rear Water Drain Hose

• Rear water drain hoses are routed in - C - pillars and end in wheel housing above wheel housing liner

• Cleaning, refer to => [ Water Drain Hoses, Cleaning ] Procedures
