Rear Door Trim, Armrest

Armrest

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)





Removing





- Switch off ignition and remove ignition key.

- Remove door trim. Refer to => [ Rear Door Trim ] Rear Door Trim.

- Remove insulation from door trim.

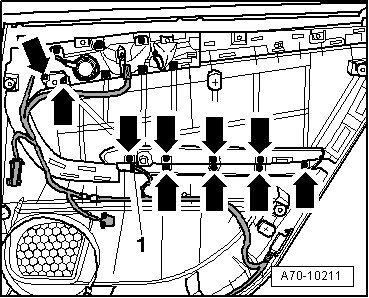

- Disconnect the connector - 1 -.

- Remove screws - arrows - and remove armrest.

Installation

Installation is reverse of removal, but note the following:

- Install door trim. Refer to => [ Rear Door Trim ] Rear Door Trim.

Tightening Specifications
