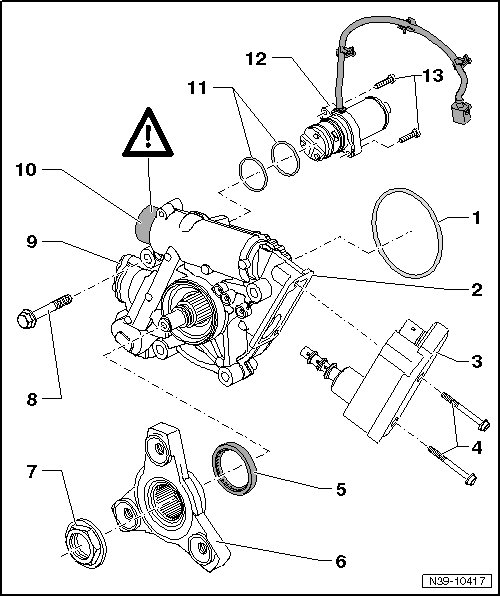

Haldex-Clutch (Generation Haldex IV), Rear Final Drive 0BR, 0BS and 0BY Overview

Haldex-Clutch (Generation Haldex IV), Rear Final Drive 0BR, 0BS and 0BY Overview






1 Seal

• Always replace

• Coat with high performance Haldex clutch oil and insert

2 Haldex Clutch Housing

• Haldex clutch, removing and installing, refer to => [ Haldex Clutch Overview ] Haldex Clutch Overview

3 All Wheel Drive (AWD) Control Module (J492)

• With Haldex clutch control valve (N373)

• Removing and installing, refer to => [ AWD Control Module (J492), Rear Final Drive 0BR, 0BS and 0BY (Haldex-Clutch Generation IV) ] AWD Control Module (J492), Rear Final Drive 0BR, 0BS and 0BY (Haldex-Clutch Generation IV)

4 Bolts

• 6 Nm

5 Flange/Driveshaft Sealing Ring

Removing and installing, refer to => [ Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed ] Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed

6 Driveshaft Flange

• Removing and Installing, refer to => [ Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed ] Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed

7 Nut

• 210 Nm

• Secure with locking fluid (D 000 600)

8 Bolts

• 50 Nm

• Quantity: 4

9 Cover

• For the oil filter housing

• A filter change is not required

10 Cover

• For the pressure reservoir

Never open the cover, danger of injury!

11 Seal

• Always replace

• Quantity: 2

• Diameter 34 mm

• For Haldex clutch pump (V181)

• Coat with high performance Haldex clutch oil and insert

12 Haldex Clutch Pump (V181)

• Removing and Installing, refer to => [ Haldex Clutch Pump (V181), Final Drive 0BR/0BS/0BY ] Haldex Clutch Pump (V181), Final Drive 0BR/0BS/0BY

13 Bolts

• 6 Nm
