Haldex-Clutch (Generation Haldex II), Rear Final Drive 02D/0AV Overview

Haldex-Clutch (Generation Haldex II), Rear Final Drive 02D/0AV Overview

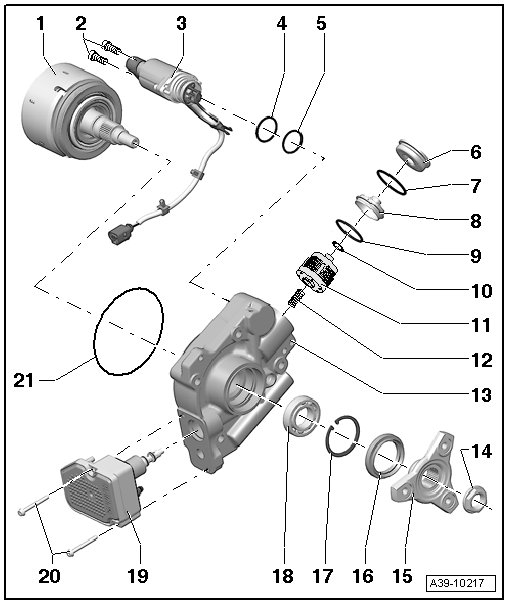

1 Clutch Plate

• Overview, refer to => [ Clutch Plate Assembly ]

• Removing and installing, refer to => [ Final Drive 02D and 0AV, Haldex Clutch Grooved Ball Bearing ] Final Drive 02D and 0AV, Haldex Clutch Grooved Ball Bearing

2 Bolts

• 6 Nm

3 Haldex Clutch Pump (V181)

• Removing and installing, refer to => [ Haldex Clutch Pump (V181), Final Drive 02D/0AV ] Haldex Clutch Pump (V181), Final Drive 02D/0AV

4 O-ring

• Always replace

• Diameter 32 mm

• For Haldex clutch pump

• Coat with high performance Haldex clutch oil and insert

5 O-ring

• Always replace

• Diameter 30 mm

• For Haldex clutch pump

• Coat with high performance Haldex clutch oil and insert

6 Cover

• 35 Nm

7 O-ring

• Always replace

• For the sealing cap

• Coat with high performance Haldex clutch oil and insert

8 Oil Filter Carrier

9 O-ring

• Always replace

• For oil filter carrier

• Coat with high performance Haldex clutch oil and insert

10 O-ring

• Always replace

• For oil filter

• Coat with high performance Haldex clutch oil and insert

11 Oil Filter

• For Haldex clutch

• No replacement interval

• Removing and installing, refer to => [ Final Drive 02D and 0AV, Haldex Clutch Oil Filter ] Service and Repair

12 Spring

13 Haldex Clutch Housing

• Haldex clutch, removing and installing, refer to => [ Haldex Clutch, Final Drive Installed ] Haldex Clutch, Final Drive Installed

• Removing from clutch plate, refer to => [ Final Drive 02D and 0AV, Haldex Clutch Grooved Ball Bearing ] Final Drive 02D and 0AV, Haldex Clutch Grooved Ball Bearing

14 Nut

• 210 Nm

• Secure with locking fluid (D 000 600)

15 Driveshaft Flange

• Removing and installing, refer to => [ Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed ] Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed

16 Flange/Driveshaft Sealing Ring

Removing and installing, refer to => [ Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed ] Rear Final Drive Flange/Driveshaft Seal, Final Drive Installed

17 Locking Ring

18 Ball bearing

• Removing and installing, refer to => [ Final Drive 02D and 0AV, Haldex Clutch Grooved Ball Bearing ] Final Drive 02D and 0AV, Haldex Clutch Grooved Ball Bearing

19 All Wheel Drive (AWD) Control Module (J492)

• With Haldex clutch control valve (N373)

• With oil pressure/temperature sensor (G437)

• Removing and installing, refer to => [ All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) Overview ] All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) Overview

20 Bolts

• 6 Nm

21 O-ring

• Always replace

• Coat with high performance Haldex clutch oil and insert

Clutch Plate Assembly





1 - Clutch Plate

Plates cannot be removed.

2 - Outer Rollers

Quantity: 3

3 - Track Rollers

Quantity: 3

Installed position: Roller faces outside

4 - Track Rollers

Quantity: 3

Installed position: Roller faces inside

5 - Axial Needle Bearing

The thick disc faces the multidisc clutch - 1 -.

6 - Axial Needle Bearing

The thick disc faces the multidisc clutch - 1 -.

7 - Axial Needle Bearing

The thick disc faces the multidisc clutch - 1 -.
