02E Automatic Transmission - Controls, Housing

Special Tools






Special tools, testers and auxiliary items required

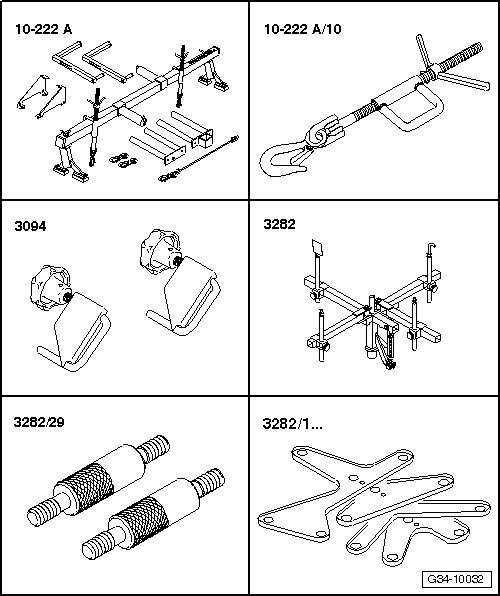

• Engine support bridge (10 - 222 A)

• Hook (10 - 222 A /10)

• Hose Clamps up to 25 mm dia. (3094)

• Transmission support (3282)

• Pin (3282/29)

• Adjustment plate (3282/42 A)






Special tools, testers and auxiliary items required

• Holding plate (VW 309)

• Holding fixture (VW 313)

• Transmission support (VW 353)

• Engine and Transmission Holder (VW 540)

• Workshop crane (VAS 6100)






Special tools, testers and auxiliary items required

• Engine support bridge (10 - 222 A)

• Hook (10 - 222 A /10)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)






Special tools, testers and auxiliary items required

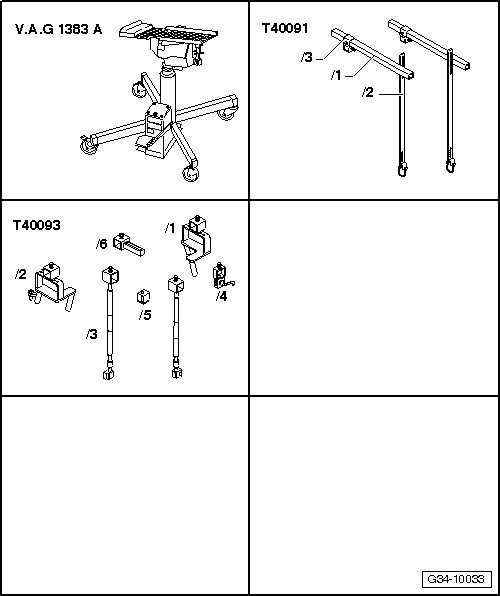

• Engine/transmission Jack (V.A.G 1383 A)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)

Special tools, testers and auxiliary items required

• Workshop crane (VAS 6100)

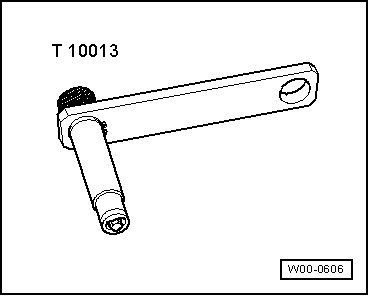

• Bracket (T10013)





• Old oil collecting and extracting device (V.A.G 1782)

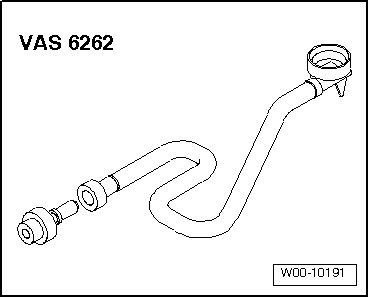

• Adapter for oil filling (VAS 6262)





• Hose clamp pliers (V.A.G 1275)





• Hose Clamps up to 25 mm dia. (3094)
