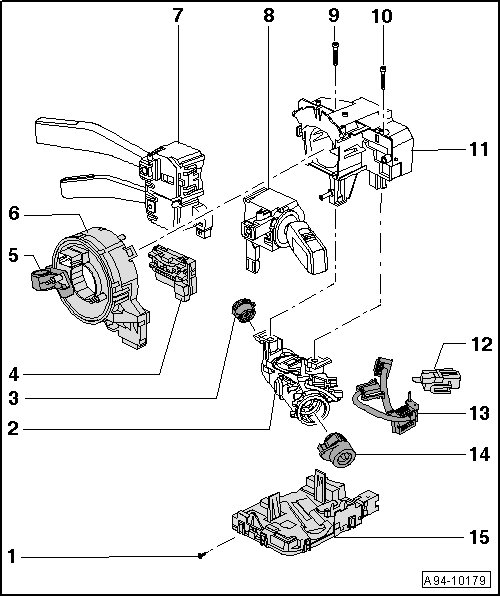

Lock Cylinder, Ignition Switch, Steering Lock Overview

Lock Cylinder, Ignition Switch, Steering Lock Overview






2 - Steering Lock Housing

• Removing and installing, refer to => [ Steering Lock Housing ] Steering Lock Housing.

3 - Ignition/Starter Switch (D)

• Removing and installing, refer to => [ Ignition Switch (D) ] Ignition Switch (D).

9 - Screw

• For steering lock housing (shear bolt).

10 - Screw

• For steering lock housing (shear bolt).

11 - Mount

12 - Ignition Switch Key Lock Solenoid (N376)

• Audi TT and TTS with DSG transmission.

• Removing and installing, refer to => [ Ignition Key Removal Lock Solenoid (N376) ] Ignition Key Removal Lock Solenoid (N376).

13 - Adapter Wiring Set

• For steering lock housing

• Removing and installing, refer to => [ Steering Lock Housing Adapter Wiring Harness ] Steering Lock Housing Adapter Wiring Harness.

14 - Lock Cylinder

• Removing and installing, refer to => [ Lock Cylinder ] Lock Cylinder.
